**********DIRECT ETCH RESIST PATTERNS FOR APPLYING TO************
****COPPER CLAD BOARDS (AND THEN APPLYING COPPER ETCHANT)****
*

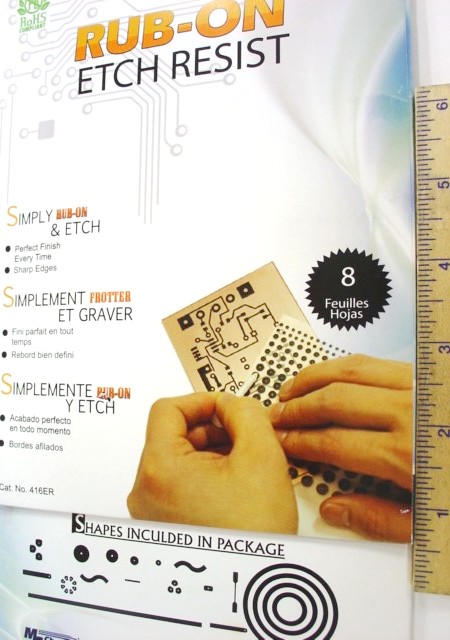

416-ER
ETCH RESIST PATTERN TRANSFER KIT-INCLUDES A VARIETY OF DONUT PAD SIZES, STRAIGHT CIRCUIT LINES, CIRCLES, AND DIFFERENT SIZES OF 3 CONTACT PADS FOR MAKING ANY CIRCUIT ON YOUR COPPER CLAD BOARD….THEN APPLY ETCHANT-INCLUDES 8 SHEETS-SIZE: 4" x 6"
$18.75
*

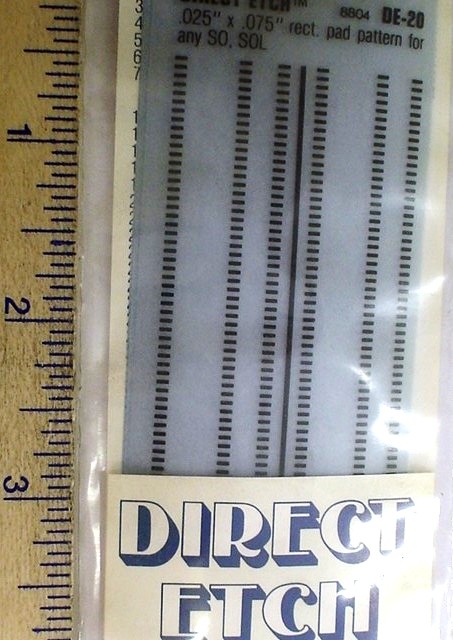

DE-20
.025" x .075" ELLIPTICAL ETCH RESIST PATTERN FOR SO & SOL TRANSFERS-PACK OF 924
$4.95
*

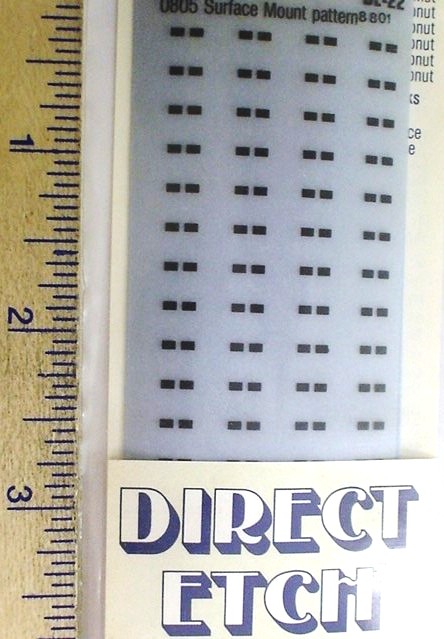

DE-22
.079" x 049" PADS WITH .031" GAP SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 144
$4.95

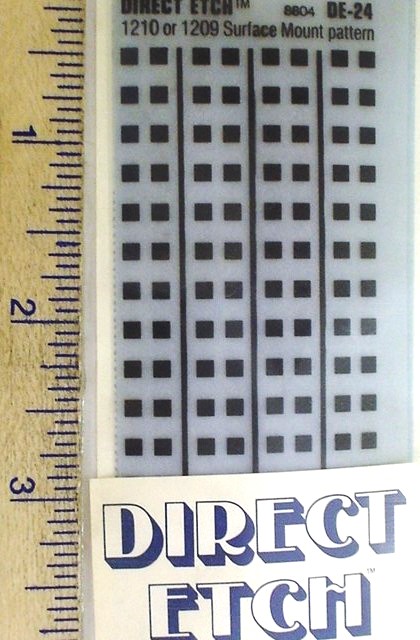

DE-24
.102" x 100" PADS WITH .067" GAP SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 144
$4.95

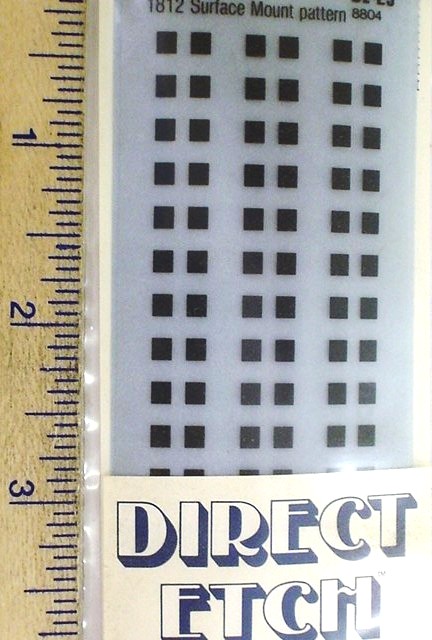

DE-25
.116" x 128" PADS WITH .128" GAP SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 96
$4.95

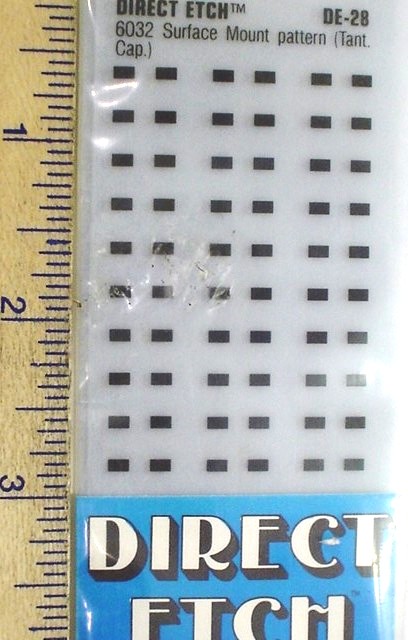

DE-28
.124" x 073" PADS WITH .118" GAP SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 96
$4.95

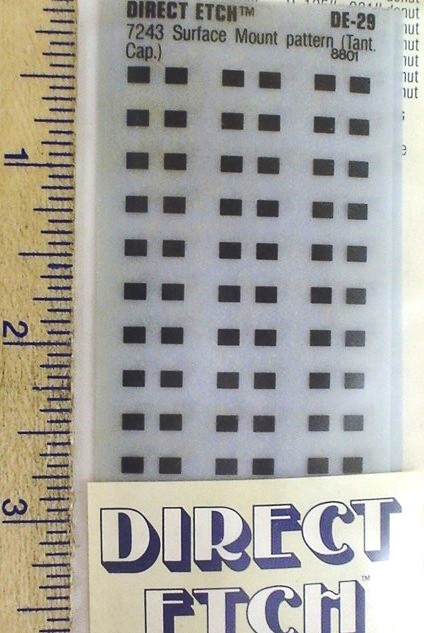

DE-29
.128" x 096" PADS WITH .089" GAP SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 96
$4.95

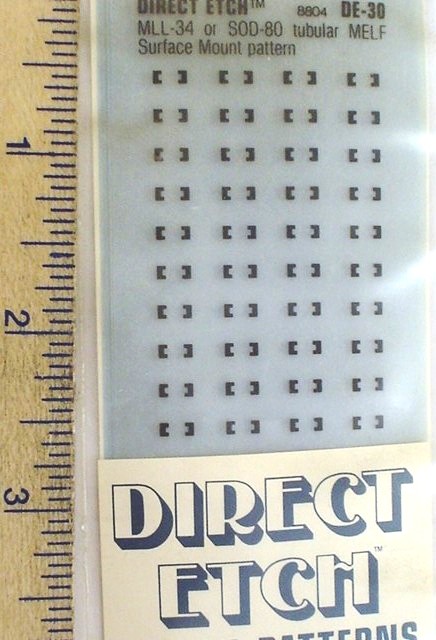

DE-30
.055" x 080" PADS WITH .090" GAP SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 136
$4.95

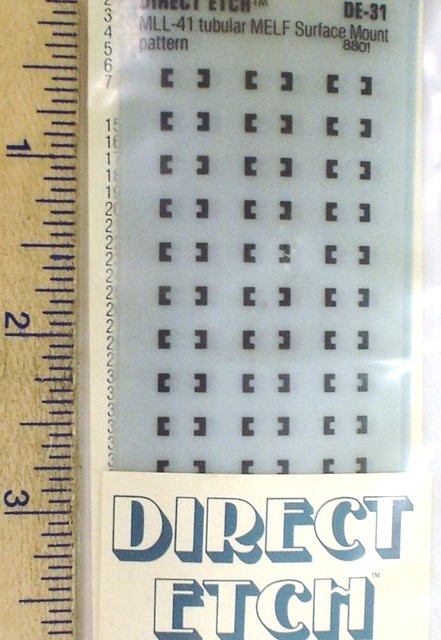

DE-31
.070" x 110" PADS WITH .140" GAP SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 90
$4.95

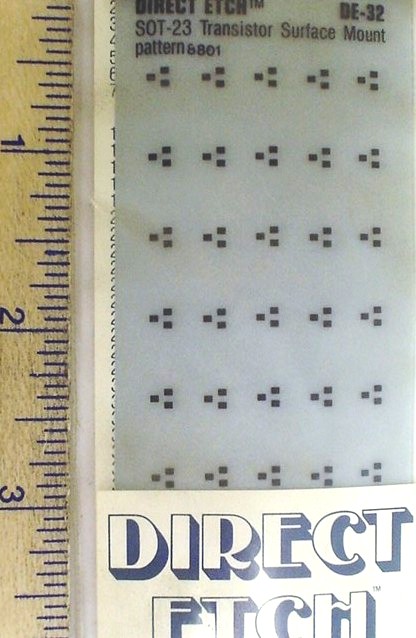

DE-32
.040" x 050" PADS WITH .075" x .080" CENTERS SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 90
$4.95

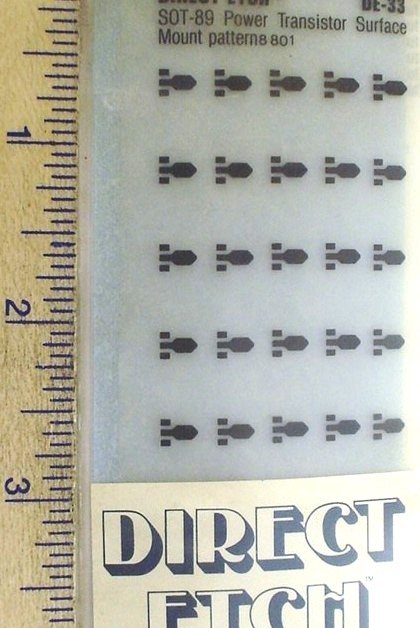

DE-33
.039" x 059" PADS WITH .059" CENTERS SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 80
$4.95
DE-34
.040" x 050" PAD WITH 3 EACH .040" SQUARE PADS ON .080" CENTERED GAP SMD (SURFACE MOUNT) ETCH RESIST PATTERN TRANSFERS-PACK OF 120
$4.95
*

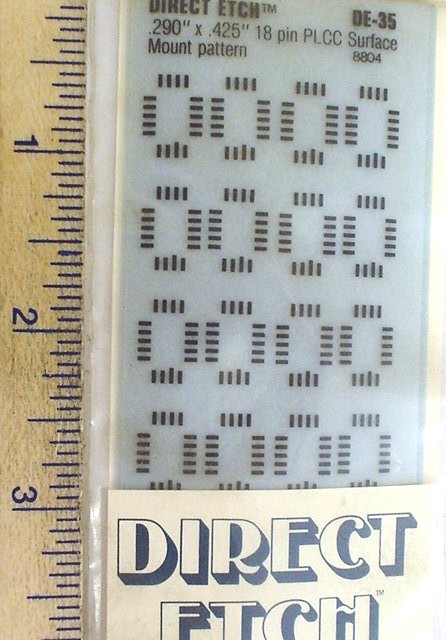

DE-35
18 PIN PLCC .290" x .425" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 48
$4.95

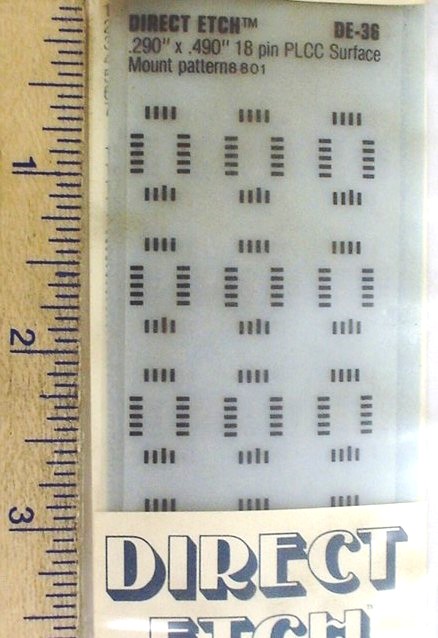

DE-36
18 PIN PLCC .290" x .490" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 30
$4.95

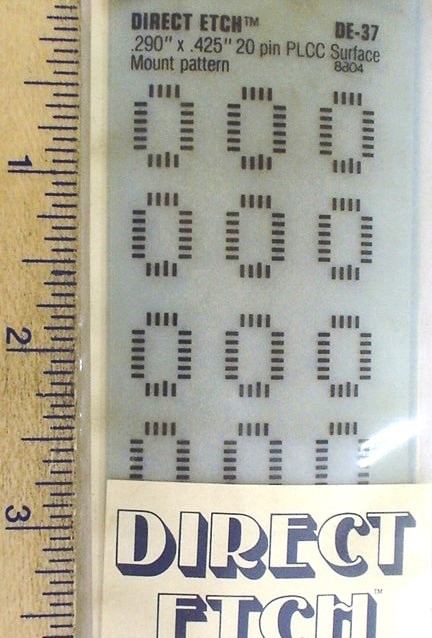

DE-37
20 PIN PLCC .290" x .425" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 36
$4.95

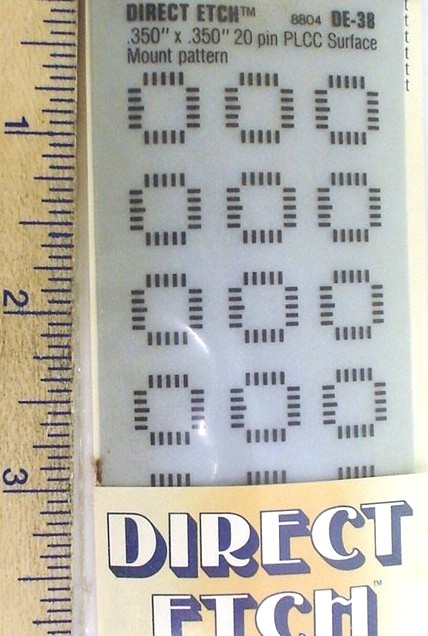

DE-38
20 PIN PLCC .350" x .350" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 42
$4.95

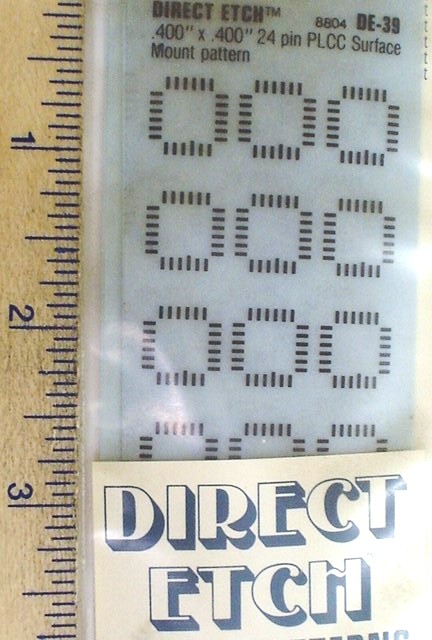

DE-39
24 PIN PLCC .400" x .400" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 36
$4.95

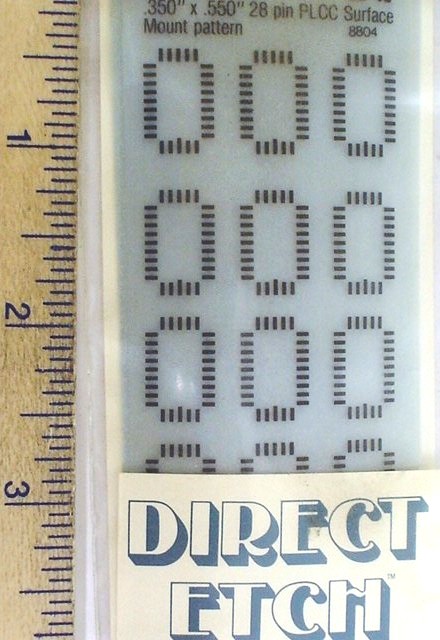

DE-40
28 PIN PLCC .350" x .550" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 30
$4.95

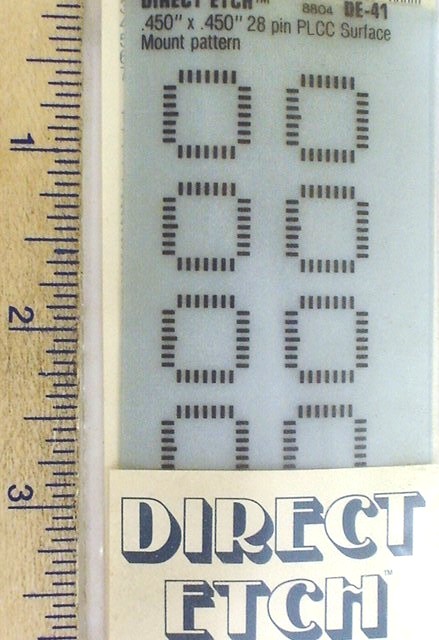

DE-41
28 PIN PLCC .450" x .450" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 24
$4.95

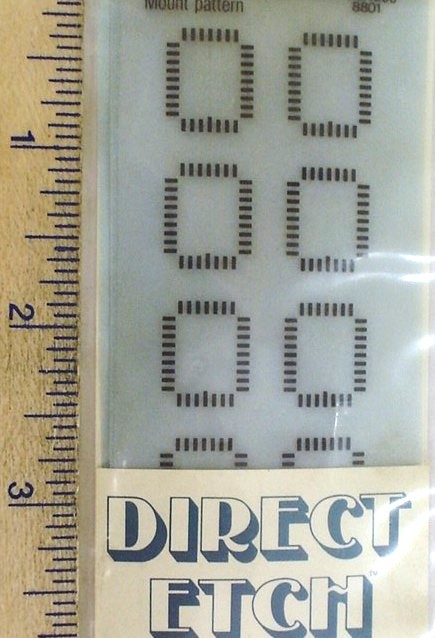

DE-42
32 PIN PLCC .450" x .550" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 20
$4.95

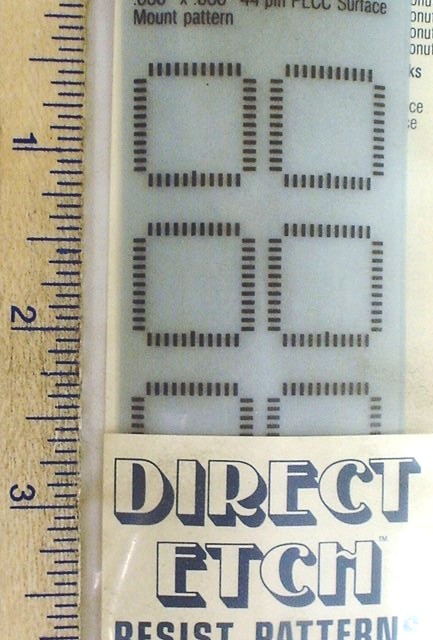

DE-43
44 PIN PLCC .650" x .650" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 16
$4.95

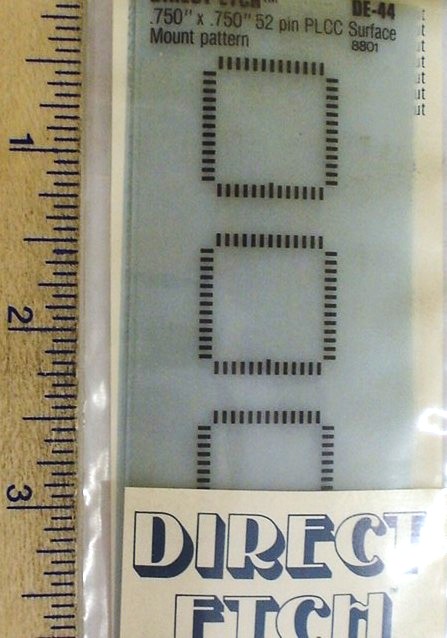

DE-44
52 PIN PLCC .750" x .750" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 8
$4.95

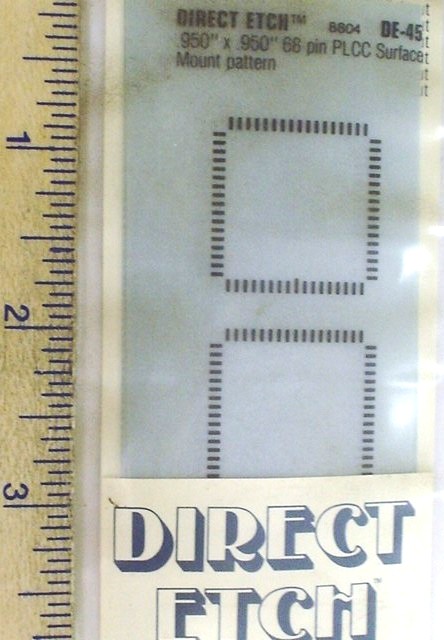

DE-45
68 PIN PLCC .950" x .950" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 6
$4.95

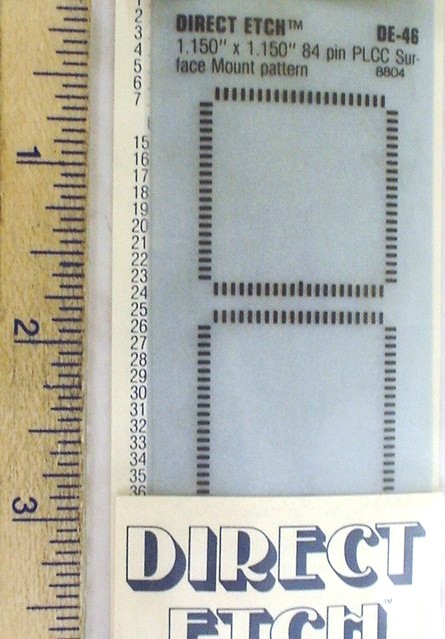

DE-46
84 PIN PLCC 1.150" x 1.150" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 6
$4.95

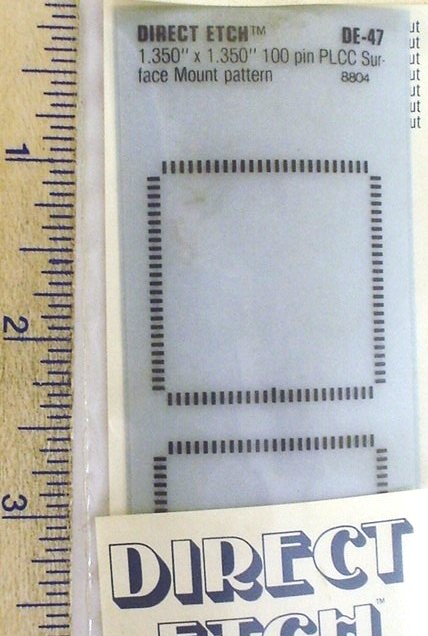

DE-47
100 PIN PLCC 1.350" x 1.350" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 4
$4.95

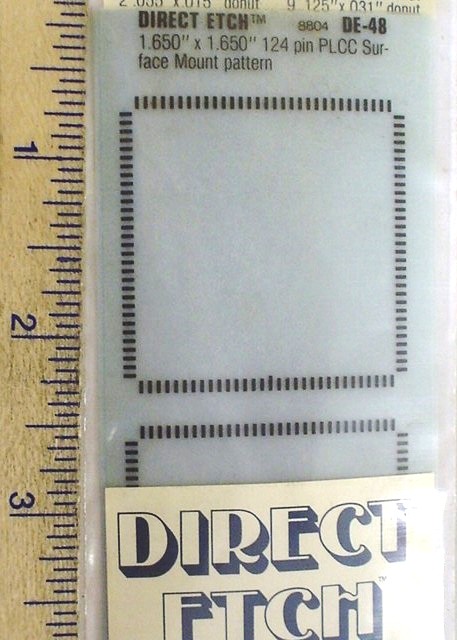

DE-48
124 PIN PLCC 1.650" x 1.650" PADS FOR ETCH RESIST PATTERN TRANSFERS-PACK OF 4
$4.95
*

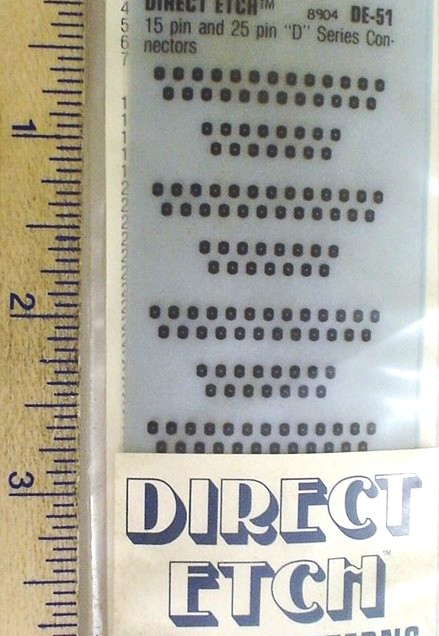

DE-51
9, 15, or 25 PIN "D" SUBMINIATURE CONNECTOR ETCH RESIST PATTERN TRANSFERS-PACK OF 12
$4.95

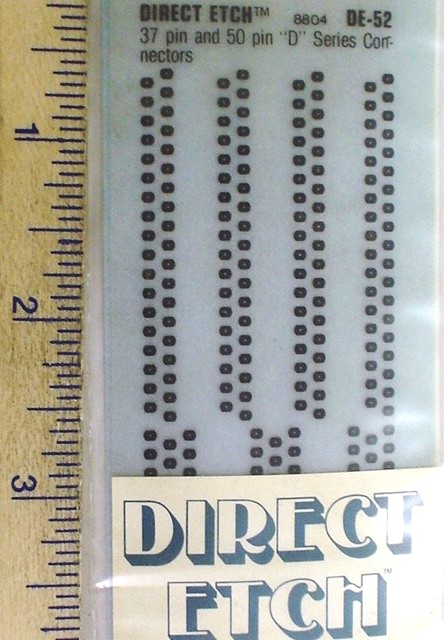

DE-52
37 or 50 PIN "D" SUBMINIATURE CONNECTOR ETCH RESIST PATTERN TRANSFERS-PACK OF 6
$4.95
*

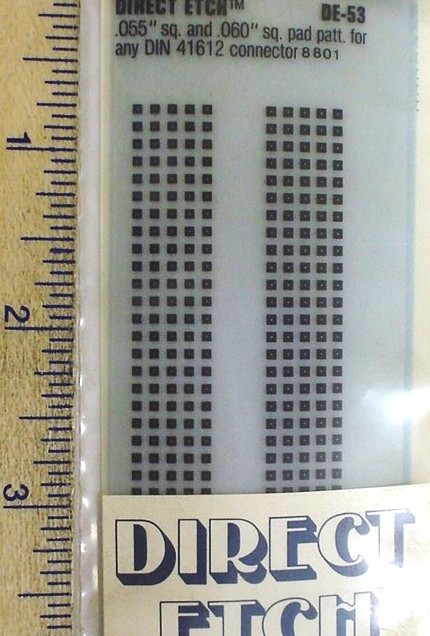

DE-53
.055" x .055" or .060" x .060" PRESPACED (.100") SQUARE PADS ETCH RESIST DIN-41612 CONNECTOR PATTERN TRANSFERS-PACK OF 2 EACH
$4.95
*

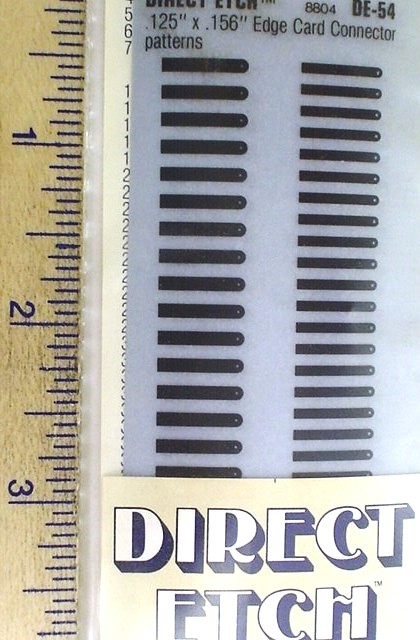

DE-54
50 CARD EDGE FINGERS .080" WIDTH ON .156" CENTERS or 62 CARD EDGE FINGERS .060" WIDTH ON .125" CENTERS ETCH RESIST PATTERN TRANSFERS-PACK OF 50 & 62 FINGERS
$4.95

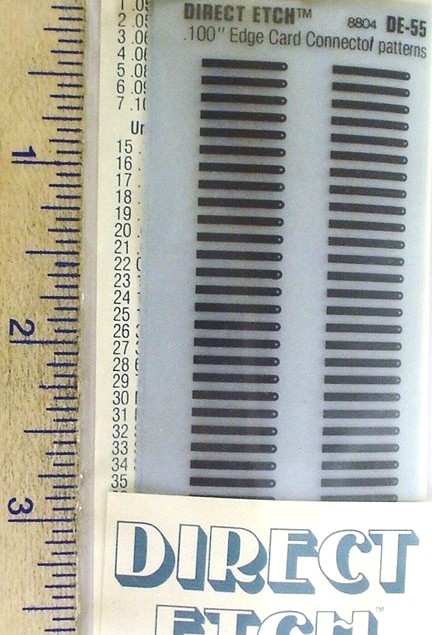

DE-55
156 CARD EDGE FINGERS .050" WIDTH ON .100" CENTERS ETCH RESIST PATTERN TRANSFERS-PACK OF 156 FINGERS
