*****************INSULATED GATE BIPOLAR TRANSISTORS*****************
**************CROSS-REFERENCED TRANSISTORS DEVICES**************
********PLEASE E-MAIL OR CALL US FOR CROSS-REFERENCES********
************ARRAIGNED BY Ic (MAXIMUM CURRENT HANDLING)***********
*

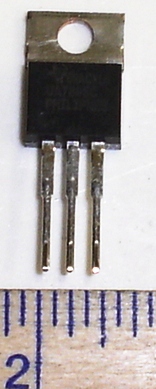

3302INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 8 amps: V(br)ces 600: Vge(OFF) 6: BVges 20: Vce 4: INPUT CAPACITANCE 650pf TO-220 PACKAGE    $7.45
3312INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 8 amps: V(br)ces1200: Vge(OFF) 6: BVges 20: Vce 4: INPUT CAPACITANCE 1150pf TO-3P PACKAGE    $13.50
3300INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 10 amps: V(br)ces 400: Vge(OFF) 7: BVges 25: Vce 8: INPUT CAPACITANCE 1350pf TO-220 PACKAGE    $10.75
3301INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 15 amps: V(br)ces 400: Vge(OFF) 7: BVges 25: Vce 8: INPUT CAPACITANCE 2000pf TO-220 PACKAGE    $10.08
3303INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 15 amps: V(br)ces 600: Vge(OFF) 6: BVges 20: Vce 4: INPUT CAPACITANCE 1100pf TO-220 PACKAGE    $9.45
3310INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 15 amps: V(br)ces 600: Vge(OFF) 6: BVges 20: Vce 4: INPUT CAPACITANCE 1100pf TO-3P PACKAGE    $15.88

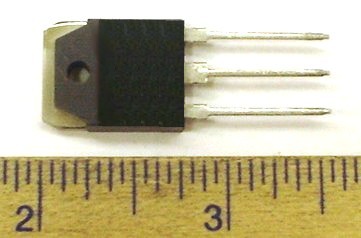

3311INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 25 amps: V(br)ces 600: Vge(OFF) 6: BVges 20: Vce 4: INPUT CAPACITANCE 1400pf TO-3P PACKAGE    $17.14

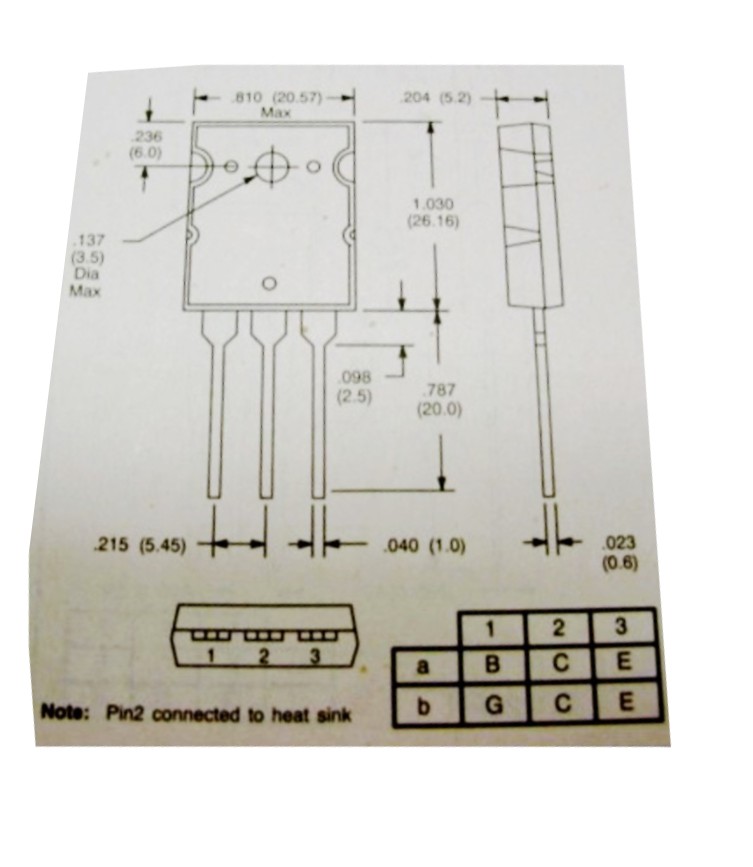

3323INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 25 amps: V(br)ces1200: Vge(OFF) 6: BVges 20: Vce 4: INPUT CAPACITANCE 3200pf ------ PACKAGE    $34.27
3320INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 50 amps: V(br)ces 600: Vge(OFF) 6: BVges 20: Vce 4: INPUT CAPACITANCE 3500pf ------ PACKAGE    $35.19
3322INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 60 amps: V(br)ces 900: Vge(OFF) 6: BVges 25: Vce3.7: INPUT CAPACITANCE 5300pf ------ PACKAGE    $37.50
3321INSULATED GATE BIPOLAR TRANSISTOR (IGBT) N-CHANNEL HIGH SPEED SWITCH-Ic 80 amps: V(br)ces 600: Vge(OFF) 6: BVges 20: Vce3.5: INPUT CAPACITANCE 5500pf ------ PACKAGE    $39.22
