88 Items Match Your Search

Free Shipping Coupon Now Available on Most Orders Over $25!
Coupon applicable for use within the USA including Alaska and Hawaii. Please use coupon code FREESHIP when checking out. EXCLUSIONS: 500 foot and 1000 foot rolls of wire; flammable and/or hazardous chemicals; and any order in excess of 15 pounds combined weight. Coupon also DOES NOT apply to: International orders, oversize, truck or expedited shipping charges. Void where prohibited by law.

Part #
Description
Price
Add To Cart
524V17175 VOLTS AC 90 JOULES METAL OXIDE VARISTOR (MOV)    $4.17
1V250250 VOLTS AC 17 JOULES METAL OXIDE VARISTOR (MOV)    $2.43
2V250250 VOLTS AC 70 JOULES METAL OXIDE VARISTOR (MOV)    $4.29
524V25250 VOLTS AC 130 JOULES METAL OXIDE VARISTOR (MOV)    $3.85

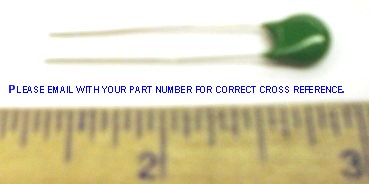

1V275275 VOLTS AC 20 JOULES METAL OXIDE VARISTOR (MOV)    $2.43
2V275275 VOLTS AC 75 JOULES METAL OXIDE VARISTOR (MOV)    $4.29
524V27275 VOLTS AC 140 JOULES METAL OXIDE VARISTOR (MOV)    $4.23
1V300300 VOLTS AC 20 JOULES METAL OXIDE VARISTOR (MOV)    $2.43
2V300300 VOLTS AC 80 JOULES METAL OXIDE VARISTOR (MOV)    $3.75
524V30300 VOLTS AC 150 JOULES METAL OXIDE VARISTOR (MOV)    $4.23

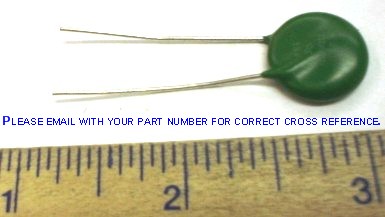

2V420420 VOLTS AC 90 JOULES METAL OXIDE VARISTOR (MOV)    $4.68
524V42420 VOLTS AC 160 JOULES METAL OXIDE VARISTOR (MOV)    $6.38
2V480480 VOLTS AC 105 JOULES METAL OXIDE VARISTOR (MOV)    $7.40

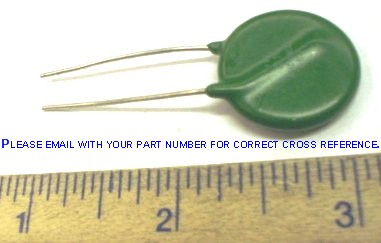

524V48480 VOLTS AC 180 JOULES METAL OXIDE VARISTOR (MOV)    $6.63
*
*********************************I.C. PROTECTORS*******************************
*********CROSS REFERENCED ICP (I.C. PROTECTION DEVICES*********
********PLEASE E-MAIL OR CALL US FOR CROSS REFERENCES*********
**************ARRAIGNED BY MAXIMUM RATED CURRENT******************
*
15019EIC PROTECTOR 0.25AMPS internal resistance: .35 ohms operating temp -55 to 125 degrees centigrade 2 PIN .1" SPACING P.C. BOARD MOUNT    $2.91
15005EIC PROTECTOR 0.4 AMPS internal resistance: .22 ohms operating temp -55 to 125 degrees centigrade 2 PIN .2" SPACING P.C. BOARD MOUNT    $4.57
15006EIC PROTECTOR 0.6 AMPS internal resistance: .14 ohms operating temp -55 to 125 degrees centigrade 2 PIN .2" SPACING P.C. BOARD MOUNT    $5.15
15007EIC PROTECTOR 0.8 AMPS internal resistance: .10 ohms operating temp -55 to 125 degrees centigrade 2 PIN .2" SPACING P.C. BOARD MOUNT    $11.25
15008EIC PROTECTOR 1.0 AMPS internal resistance: .07 ohms operating temp -55 to 125 degrees centigrade 2 PIN .2" SPACING P.C. BOARD MOUNT    $2.91
15009EIC PROTECTOR 1.5 AMPS internal resistance: .04 ohms operating temp -55 to 125 degrees centigrade 2 PIN .2" SPACING P.C. BOARD MOUNT    $2.91
*
15020EIC PROTECTOR 0.4 AMPS internal resistance: .22 ohms operating temp -55 to 125 degrees centigrade 2 PIN .1" SPACING P.C. BOARD MOUNT    $2.91
15021EIC PROTECTOR 0.6 AMPS internal resistance: .14 ohms operating temp -55 to 125 degrees centigrade 2 PIN .1" SPACING P.C. BOARD MOUNT    $2.91
15022EIC PROTECTOR 0.8 AMPS internal resistance: .10 ohms operating temp -55 to 125 degrees centigrade 2 PIN .1" SPACING P.C. BOARD MOUNT    $2.91
15023EIC PROTECTOR 1.0 AMPS internal resistance: .07 ohms operating temp -55 to 125 degrees centigrade 2 PIN .1" SPACING P.C. BOARD MOUNT    $2.91
*
**********CROSS REFERENCED SURGE ARRESTER DEVICES***********
********PLEASE E-MAIL OR CALL US FOR CROSS REFERENCES*********
**************ARRAIGNED BY NOMINAL RATED VOLTAGE******************
*
15040-ECGSURGE ARRESTER-GAS FILLED 75 VOLTS nominal 60 VOLTS minimum 90 VOLTS maximum AXIAL LEADS PACKAGE    $5.94
15041-ECGSURGE ARRESTER-GAS FILLED 90 VOLTS nominal 72 VOLTS minimum 108 VOLTS maximum AXIAL LEADS PACKAGE    $5.94
15042-ECGSURGE ARRESTER-GAS FILLED 110 VOLTS nominal 88 VOLTS minimum 132 VOLTS maximum AXIAL LEADS PACKAGE    $5.78

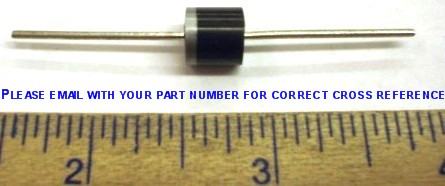

15043-ECGSURGE ARRESTER-GAS FILLED 145 VOLTS nominal 116 VOLTS minimum 174 VOLTS maximum AXIAL LEADS PACKAGE    $5.36
