Part # | Description | Photo | Price | Add To Cart |
| ***************************PROTOTYPING CIRCUITS***************************** |  |
| * | |

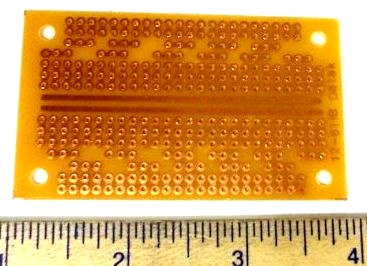

| 12-611 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A GENERAL PURPOSE PATTERN WITH BUSSED CENTER-PHENOLIC BOARD-SIZE: 1-3/4" x 2-7/8" x 1/16" THICK | | $3.30 | |

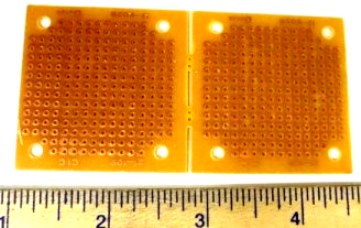

| 12-602 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A GENERAL PURPOSE PATTERN-PHENOLIC BOARD-SIZE: 1-3/4" x 1-3/4" x 1/16" THICK-PACK OF 2 | | $4.25 | |

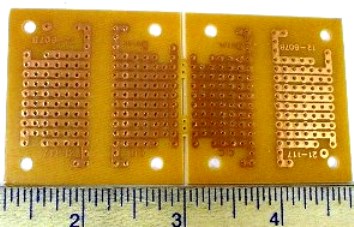

| 12-607 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN AN UP TO 20 PIN INTEGRATED CIRCUIT PATTERN-PHENOLIC BOARD-SIZE: 1-3/4" x 1-3/4" x 1/16" THICK-PACK OF 2 | | $3.50 | |
| BPSST1 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A STRIPBOARD CIRCUIT PATTERN (19 STRIPS ON ONE SIDE)--FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SIZE: 50mm x 80mm x 1/16" THICK | | $7.50 | |
| PR2H1 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A 2 HOLE CIRCUIT PATTERN ON ONE SIDE-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SIZE: 50mm x 80mm x 1/16" THICK | | $5.75 | |
| PAD1 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A ONE PAD PER HOLE PATTERN (DOUBLE SIDED)-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SIZE: 50mm x 80mm x 1/16" THICK | | $5.75 | |

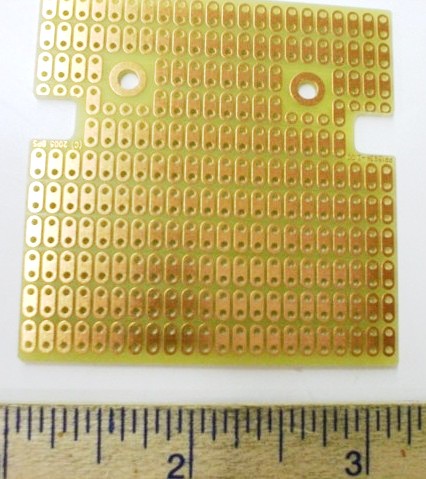

| 1593K | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A 2 HOLE PLATED PATTERN. THIS PROVIDES AN EASY WAY TO CONNECT PARTS WHILE MAXIMIZING USABLE BOARD AREA.-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SIZE: 2-3/8" x2-3/8" x 1/16" THICK | | $5.75 | |

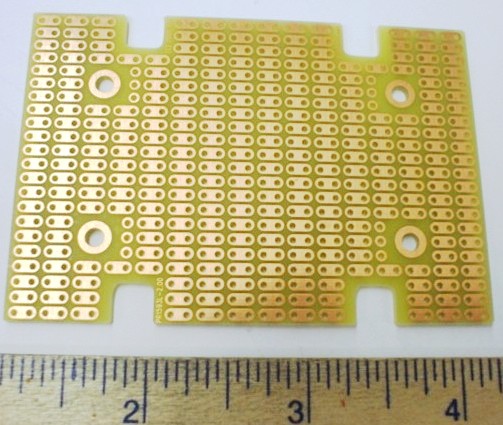

| 1593L | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A 2 HOLE PLATED PATTERN. THIS PROVIDES AN EASY WAY TO CONNECT PARTS WHILE MAXIMIZING USABLE BOARD AREA.-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SIZE: 3-3/8" x2-3/8" x 1/16" THICK | | $7.50 | |
| SB404 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A TWO BUSSED PAD & A FIVE BUSSED PAD & A 30 BUSSED PAD PATTERN (ONE SIDE). TRANSFER YOUR PARTS FROM A PLUG-IN TYPE BREADBOARD FOR A RUGGED PROTOTYPE--FR4 (FLAME RETARDANT) GLASS EPOXY BOA | | $7.50 | |
| SP1-50X50-G | PRINTED CIRCUIT BOARD WITH A GRID OF SMT PADS ON 0.050" CENTERS. ALLOWS SMT COMPONENTS OF VARIOUS SIZES AND PITCHES TO BE MOUNTED (SOIC 0.050" PITCH). ONE SIDE-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SIZE: 50mm x 80mm x 1/16" THICK | | $7.50 | |

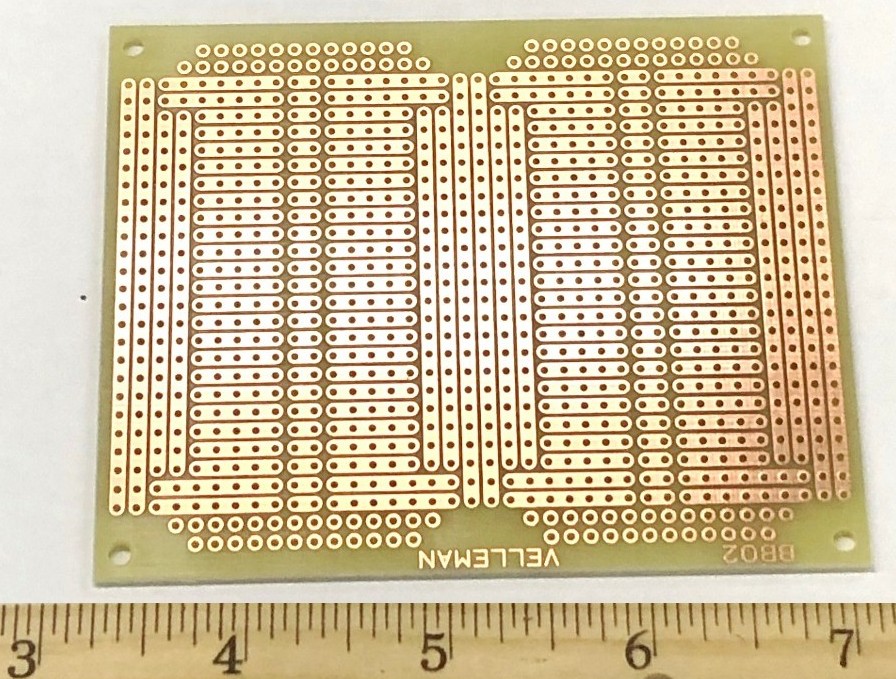

| BBO2 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN MULTIPLE 2 HOLE, 5 HOLE & 7 HOLE PATTERNS WITH 14 BUS PATTERNS MIXED AROUND THE BOARD-PHENOLIC BOARD-SIZE: 3-1/8" x 3-7/8" x 1/16" THICK | | $8.75 | |

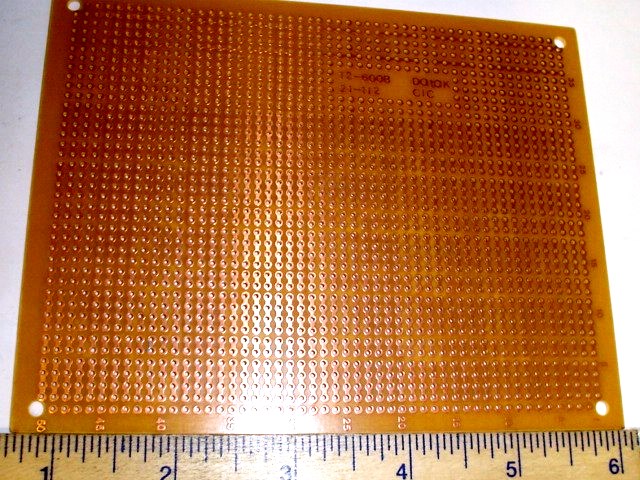

| 12-600 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A PATTERN DESIGNED FOR USE WITH MULTIPLE INTEGRATED CIRCUITS-PHENOLIC BOARD-SIZE: 4-3/8" x 5-1/2" x 1/16" THICK | | $9.75 | |
| PAD2 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A ONE PAD PER HOLE PATTERN (DOUBLE SIDED)--FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SIZE: 80mm x 100mm x 1/16" THICK | | $9.95 | |

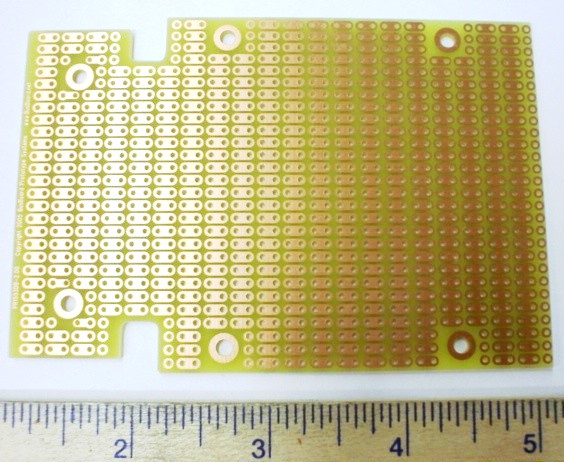

| 1593DB | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A 2 HOLE PLATED PATTERN. THIS PROVIDES AN EASY WAY TO CONNECT PARTS WHILE MAXIMIZING USABLE BOARD AREA.-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SIZE: 5-1/2" x2-7/8" x 1/16" THICK | | $11.75 | |

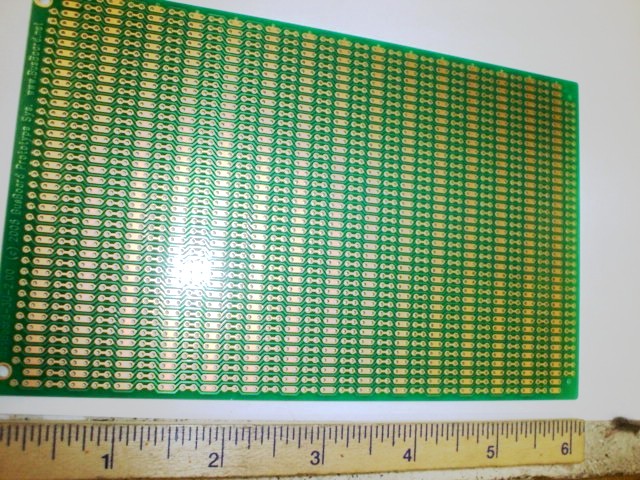

| BB3U | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A ZIG-ZAG PATTERN DESIGNED TO REDUCE CUT TRACES & TO SPEED PROTOTYPE ASSEMBLY-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6-3/8" x 3-7/8" x 1/16" THICK | | $15.75 | |

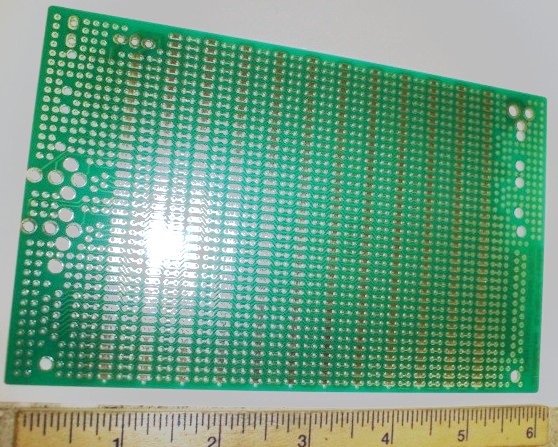

| BB3UC | SAMES AS BB3U BOARD EXCEPT IT INCLUDES CONNECTOR FOOTPRINTS SUCH AS DB9, DB25, BNC (2), RJ11 (2), SUB-MINI OR MINI JACK, POWER JACK & SPDT MINI TOGGLE SWITCH-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6-3/8" x 3-7/8" x 1/16" THICK | | $15.75 | |

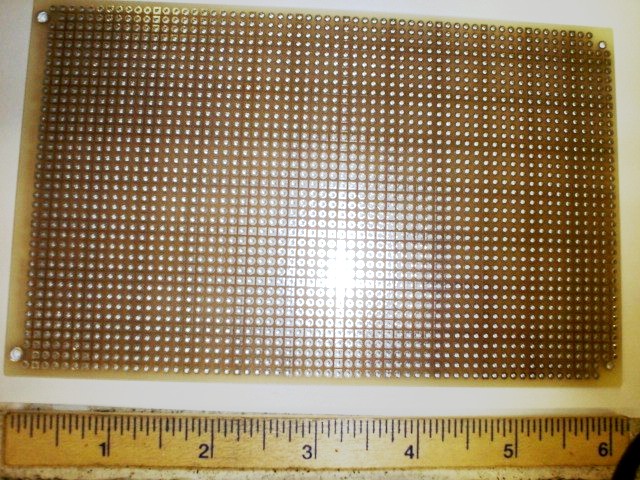

| PAD3U | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING). HAS A GENERAL PURPOSE PAD-PER-HOLE PATTERN GOOD FOR ANALOG & DIGITAL USE-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6-3/8" x 3-7/8" x 1/16" THICK | | $17.50 | |

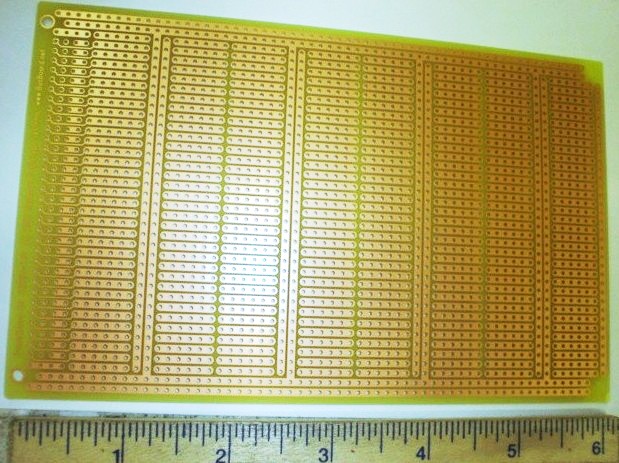

| POW3U | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING). HAS INTERLEAVED POWER & GROUND RAILS TO EASILY DISTRIBUTE POWER TO YOUR CIRCUITS-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6-3/8" x 3-7/8" x 1/16" THICK | | $15.75 | |

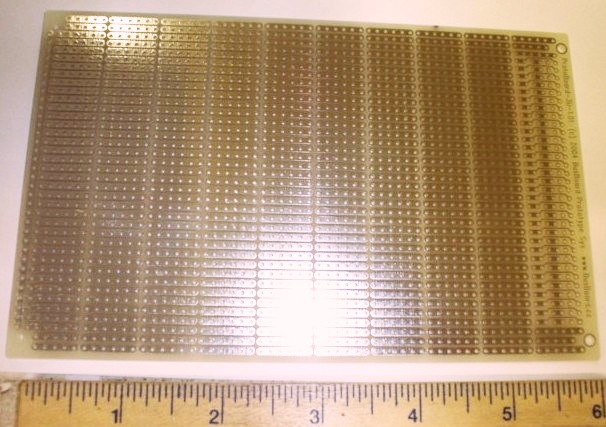

| PR3U | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING). HAS A GENERAL PURPOSE 6 HOLES PER STRIP STRIPBOARD PATTERN-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6-3/8" x 3-7/8" x 1/16" THICK | | $15.75 | |

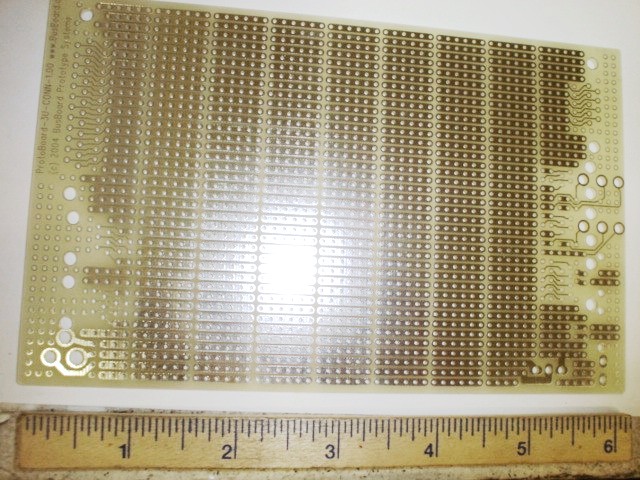

| PR3UC | SAMES AS PR3U BOARD EXCEPT IT INCLUDES CONNECTOR FOOTPRINTS SUCH AS DB9, DB25, BNC (2), RJ11 (2), SUB-MINI OR MINI JACK, POWER JACK & SPDT MINI TOGGLE SWITCH-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6-3/8" x 3-7/8" x 1/16" THICK | | $15.75 | |
| SMT3U | PRINTED CIRCUIT BOARD WITH COPPER PLATED SMT RECTANGLE PADS SPACED FOR 0805 & 1206 SMT COMPONENTS. IT ALSO HAS (3) SOIC-32 FOOTPRINTS EACH ROUTED TO 32 SMT PADS-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6-3/8" x 3-7/8" x 1/16" THICK | | $17.50 | |
| RF3U | ULTRA THIN VERSION OF SMT3U BOARD-ONLY 1/32" THICK | | $18.95 | |
| SP3UT | ULTRA THIN PRINTED CIRCUIT BOARD WITH COPPER PLATED SMT PAD GRID FOR 0402, 0603, 0805, 1206 & OTHER SMT COMPONENTS WITH A GROUND PLANE. IT FEATURES 50mils (0.050") SQUARE PADS ON 50 MIL CENTERS-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6- | | $17.50 | |

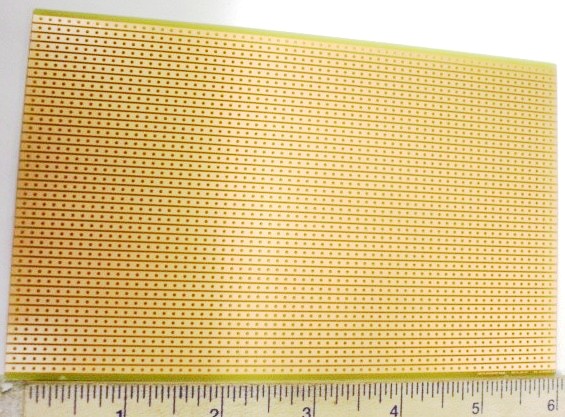

| ST3U | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A STRIPBOARD PATTERN WITH (38) TRACKS THAT RUNS THE LENGTH OF THE BOARD. FOR GENERAL PURPOSE PROTOTYPING-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 6-3/8" x 3-7/8" x 1/16" | | $15.75 | |

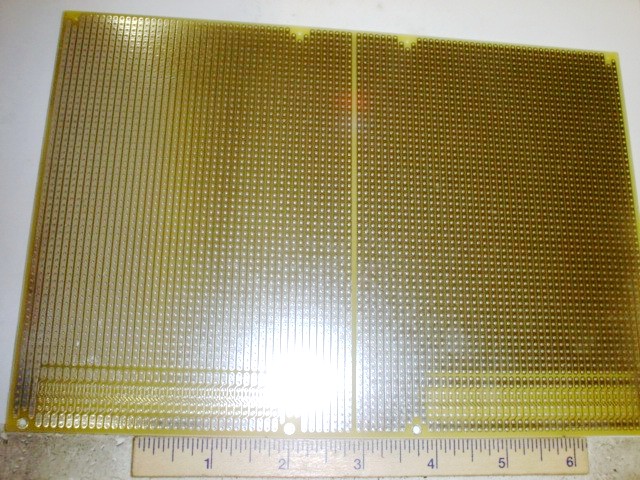

| ST6U | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A STRIPBOARD PATTERN WITH (90) TRACKS THE LENGTH OF THE BOARD. ACCEPTS (2) 64 PIN OR 96 PIN DIN-41612 CONNECTOR-FR4 (FLAME RETARDANT) GLASS EPOXY BOARD-SINGLE SIDED-SIZE: 9-1/4" x 6-3/8" x | | $34.75 | |

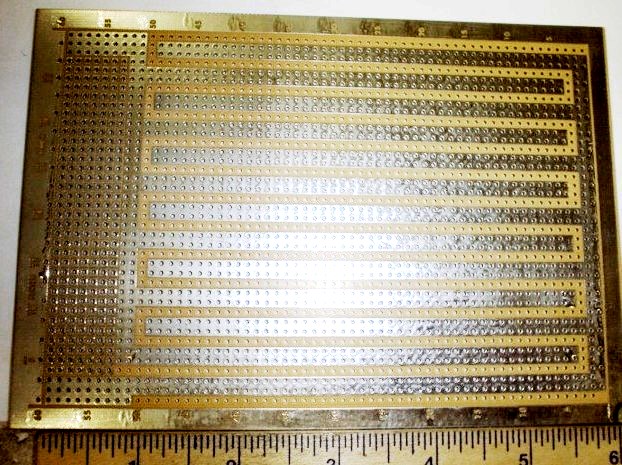

| 8002 | PRINTED CIRCUIT BOARD WITH COPPER PLATED HOLES (.100" SPACING) IN A 13 BUS PATTERN-PHENOLIC BOARD-SIZE: 4-1/2" x 6-1/2" x 1/16" THICK | | $31.46 | |
| * | |

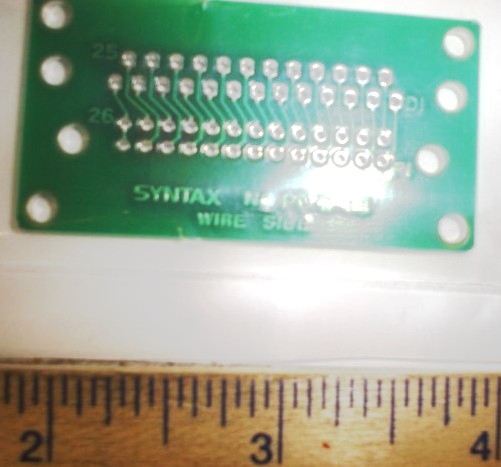

| PC-D-25 | PRINTED CIRCUIT BOARD WITH COPPER PLATED THROUGH HOLES IN A 25 PIN "D" TYPE PATTERN-SIZE: 2-3/16" x 1-1/4" x 1/16" THICK | | $8.34 | |

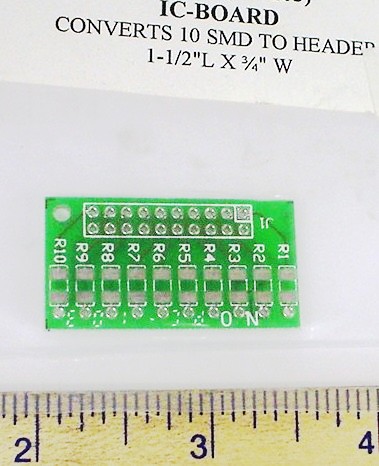

| PC-103 | PRINTED CIRCUIT BOARD WITH COPPER PLATED THROUGH HOLES IN A 10 SMD TYPE PATTERN-SIZE: 1-1/2" x 3/4" x 1/16" THICK | | $9.75 | |

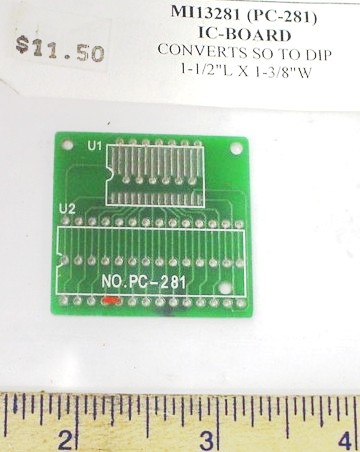

| PC-281 | PRINTED CIRCUIT BOARD WITH COPPER PLATED THROUGH HOLES IN A 28 PIN DIP TYPE PATTERN-SIZE: 1-1/2" x 1-3/8" x 1/16" THICK | | $11.50 | |
| * | |
| **********UNI-BOARDS DESIGNED FOR CIRCUIT PROTOTYPING********** | |
| ***********************& DISCRETE COMPONENTS**************************** | |
| * | |

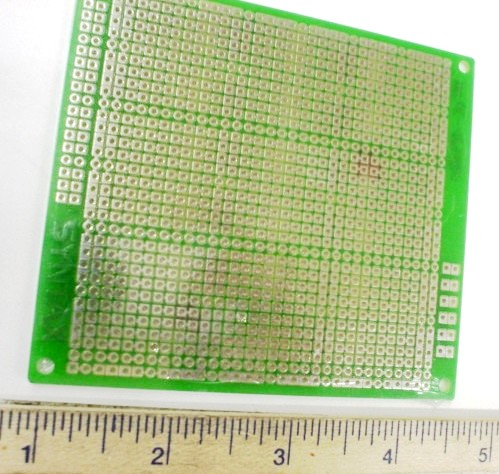

| PC-462904 | PRINTED CIRCUIT BOARD WITH COPPER PLATED THROUGH HOLES IN A GENERAL PURPOSE PATTERN WITH 2 HOLE SOLDER PADS(.100" PIN SPACING)-SIZE: 3-3/4" x 3-3/8" x 1/16" THICK | | $8.50 | |
| * | |

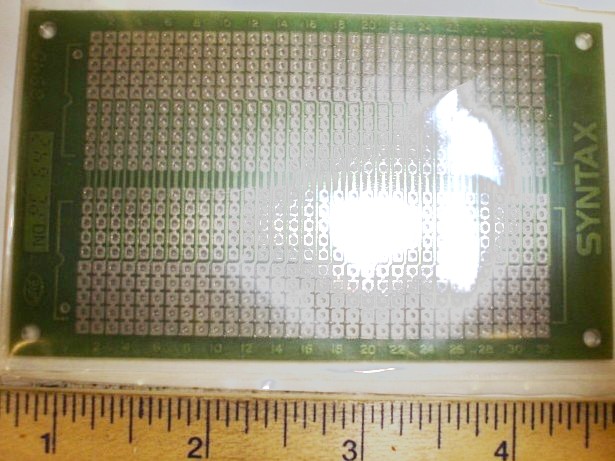

| PC-642 | PRINTED CIRCUIT BOARD WITH COPPER PLATED THROUGH HOLES IN A GENERAL PURPOSE PATTERN WITH 5 HOLE SOLDER PADS (.100" PIN SPACING)-SIZE: 4-1/16" x 2-3/8" x 1/16" THICK | | $9.75 | |
| * | |
|
|
