555 Items Match Your Search

Free Shipping Coupon Now Available on Most Orders Over $25!
Coupon applicable for use within the USA including Alaska and Hawaii. Please use coupon code FREESHIP when checking out. EXCLUSIONS: 500 foot and 1000 foot rolls of wire; flammable and/or hazardous chemicals; and any order in excess of 15 pounds combined weight. Coupon also DOES NOT apply to: International orders, oversize, truck or expedited shipping charges. Void where prohibited by law.
Part #
Description
Price
Add To Cart
396NPN SILICON TRANSISTOR-HIGH VOLTAGE, HIGH SPEED SWITCHING-Ic 1.0 amps: BVcbo 450V: BVceo 350V: BVebo 7V: Hfe=40 -TO-39 CASE (COMPLIMENT TO 397)    $3.69
397PNP SILICON TRANSISTOR-HIGH VOLTAGE, HIGH SPEED SWITCHING-Ic 1.0 amps: BVcbo 450V: BVceo 350V: BVebo 7V: Hfe=40 -TO-39 CASE (COMPLIMENT TO 396)    $4.23
198NPN SILICON TRANSISTOR-HIGH VOLTAGE AUDIO OUTPUT-Ic 1 amps: Bvcbo 500V: BVceo 500 BVebo 5V: Hfe 80min: Pd 40 watts-TO 220 CASE    $3.45

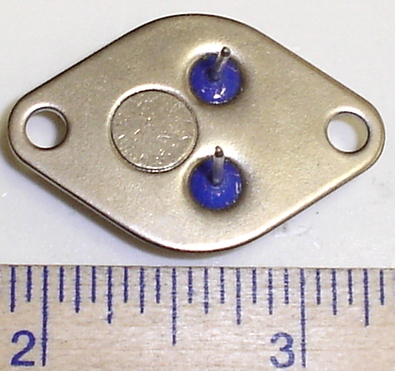

164NPN SILICON TRANSISTOR-TV VERTICAL OUTPUT-Ic 1.0 amps: BVcbo 1500V: BVceo 700V: BVebo 5V: Hfe 30min: Pd 50 watts-TO 3 CASE    $10.05
*
159MCPPNP & NPN MATCHED COMPLIMENTARY PAIR OF SILICON TRANSISTORS-GENERAL PURPOSE AUDIO AMPLIFIER-Ic 1.0 amps: BVcbo 80V: BVceo 80V: BVebo 5V: Hfe 180min: Pd 0.625 watts-TO 92 CASE (MATCHED COMPLIMENTARY PAIR OF MODELS 123AP &159)    $3.60
129MCPPNP & NPN MATCHED COMPLIMENTARY PAIR OF SILICON TRANSISTORS-AUDIO OUTPUT-Ic 1.0 amps: BVcbo 80V: BVceo 80V: BVebo 7V: Hfe 90min: Pd 0.8 watts-TO 39 CASE (COMPLIMENTARY MATCHED COMPLIMENTARY PAIR OF MODELS 128 & 129)    $5.20
*
***********************************Ic=1.5 AMPS************************************
*
300NPN SILICON TRANSISTOR-AUDIO AMPLIFIER-Ic 1.5 amps: BVcbo 50V: BVceo 40V: BVebo 5V: Hfe=90 -TO-202 CASE (COMPLIMENT TO 307)    $3.90

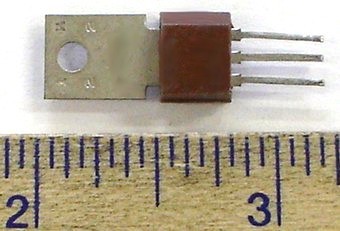

300MPNPN SILICON TRANSISTOR-AUDIO AMPLIFIER-Ic 1.5 amps: BVcbo 50V: BVceo 40V: BVebo 5V: Hfe=90 -TO-202 CASE (MATCHED PAIR OF MODEL 300)    $8.33
307PNP SILICON TRANSISTOR-AUDIO AMPLIFIER-Ic 1.5 amps: BVcbo 50V: BVceo 40V: BVebo 5V: Hfe=90 -TO-202 CASE (COMPLIMENT TO 300)    $5.88

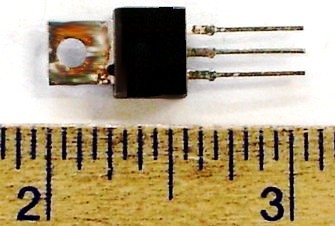

302NPN SILICON TRANSISTOR-TRANSMITTER DRIVER SWITCH-Ic 1.5 amps: BVcbo 100V: BVceo 50V: BVebo 6V: Hfe=199 -B2 CASE    $4.26
324NPN SILICON TRANSISTOR-GENERAL PURPOSE SWITCHING-Ic 1.5 amps: BVcbo 120V: BVceo 100V: BVebo 5V: Hfe=80 -TO-39 CASE (COMPLIMENT TO 323)    $5.45
323PNP SILICON TRANSISTOR-GENERAL PURPOSE SWITCHING-Ic 1.5 amps: BVcbo 120V: BVceo 100V: BVebo 5V: Hfe=80 -TO-39 CASE (COMPLIMENT TO 324)    $5.25
373NPN SILICON TRANSISTOR-AUDIO AMPLIFIER-Ic 1.5 amps: BVcbo 180V: BVceo 160V: BVebo 5V: Hfe=60 -TO-126 CASE (COMPLIMENT TO 374)    $2.25
374PNP SILICON TRANSISTOR-AUDIO AMPLIFIER-Ic 1.5 amps: BVcbo 180V: BVceo 160V: BVebo 5V: Hfe=60 -TO-126 CASE (COMPLIMENT TO 373)    $2.73
2519NPN SILICON TRANSISTOR-HIGH SPEED DRIVER-Ic 1.5 amps: BVcbo 180V: BVceo 160V: BVebo 6V: Hfe=140 -TO-126ML CASE (COMPLIMENT TO 2520)    $2.25
2520PNP SILICON TRANSISTOR-HIGH SPEED DRIVER-Ic 1.5 amps: BVcbo 180V: BVceo 160V: BVebo 6V: Hfe=140 -TO-126ML CASE (COMPLIMENT TO 2519)    $1.88
2528NPN SILICON TRANSISTOR-HIGH SPEED SWITCHING-Ic 1.5 amps: BVcbo 180V: BVceo 160V: BVebo 6V: Hfe=100 -TO-126N CASE (COMPLIMENT TO 2529)    $2.34
2529PNP SILICON TRANSISTOR-HIGH SPEED SWITCHING-Ic 1.5 amps: BVcbo 180V: BVceo 160V: BVebo 6V: Hfe=100 -TO-126N CASE (COMPLIMENT TO 2528)    $1.98
*
***********************************Ic=2.0 AMPS************************************
*
176PNP GERMANIUM TRANSISTOR-AUDIO POWER AMP-Ic 2.0 amps: BVcbo 25V: BVceo 25V: BVebo 10V: Hfe 110min: Pd 6 watts-TO 39 CASE    $7.38
2504NPN SILICON TRANSISTOR-HIGH GAIN SWITCHING-Ic 2.0 amps: BVcbo 30V: BVceo 25V: BVebo 15V: Hfe=1500 -TO-126LP CASE    $2.40
2505NPN SILICON TRANSISTOR-HIGH GAIN SWITCHING-Ic 2.0 amps: BVcbo 30V: BVceo 25V: BVebo 15V: Hfe=1500 ------- CASE    $1.89

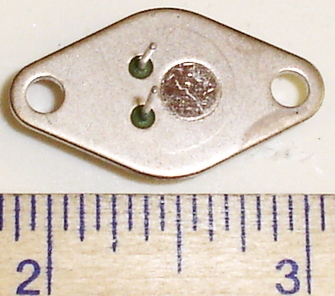

226PNP GERMANIUM TRANSISTOR-AUDIO POWER OUTPUT-Ic 2.0 amps: BVcbo 35V: BVceo 35V: BVebo 6V: Hfe=100 -TO-66 CASE    $4.55
226MPPNP GERMANIUM TRANSISTOR-AUDIO POWER OUTPUT-Ic 2.0 amps: BVcbo 35V: BVceo 35V: BVebo 6V: Hfe=100 -TO-66 CASE (MATCHED PAIR OF MODEL 226)    $11.02
20NPN SILICON TRANSISTOR-HIGH POWER OUTPUT DRIVER-Ic 2.0 amps: BVcbo 40V: BVceo 32V: BVebo 5V: Hfe 120min: Pd 1 watts-ATR CASE (COMPLIMENT TO 21)    $2.40
21PNP SILICON TRANSISTOR-HIGH POWER OUTPUT DRIVER-Ic 2.0 amps: BVcbo 40V: BVceo 32V: BVebo 5V: Hfe 120min: Pd 1 watts-ATR CASE (COMPLIMENT TO 20)    $2.61
2363NPN SILICON TRANSISTOR-HIGH SPEED SWITCHING-Ic 2.0 amps: BVcbo 60V: BVceo 50V: BVebo 6V: Hfe=200 -TO-92 CASE (COMPLIMENT TO 2363)    $3.11

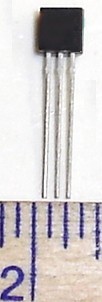

2364PNP SILICON TRANSISTOR-HIGH SPEED SWITCHING-Ic 2.0 amps: BVcbo 60V: BVceo 50V: BVebo 6V: Hfe=200 -TO-92 CASE (COMPLIMENT TO 2364)    $1.92

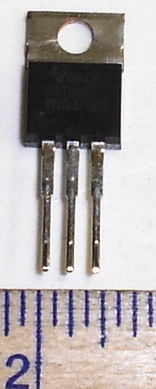

2576NPN SILICON TRANSISTOR-AUDIO OUTPUT DRIVER-Ic 2.0 amps: BVcbo 180V: BVceo 180V: BVebo 6V: Hfe=60 -TO-220 CASE (COMPLIMENT TO 2577)    $5.05
2577PNP SILICON TRANSISTOR-AUDIO OUTPUT DRIVER-Ic 2.0 amps: BVcbo 180V: BVceo 180V: BVebo 6V: Hfe=60 -TO-220 CASE (COMPLIMENT TO 2576)    $4.70
375NPN SILICON TRANSISTOR-GENERAL PURPOSE SWITCHING-Ic 2.0 amps: BVcbo 200V: BVceo 150V: BVebo 6V: Hfe=100 -TO-220 CASE (COMPLIMENT TO 398)    $3.51
398PNP SILICON TRANSISTOR-GENERAL PURPOSE SWITCHING-Ic 2.0 amps: BVcbo 200V: BVceo 150V: BVebo 6V: Hfe=100 -TO-220 CASE (COMPLIMENT TO 375)    $3.42
175NPN SILICON TRANSISTOR-HIGH POWER,MEDIUM POWER SWITCHING-Ic 2.0 amps: BVcbo 400V: BVceo 350V: BVebo 6V: Hfe 50min: Pd 35 watts-TO 66 CASE (COMPLIMENT TO 38)    $7.44
38PNP SILICON TRANSISTOR-HIGH POWER,MEDIUM POWER SWITCHING-Ic 2.0 amps: BVcbo 400V: BVceo 350V: BVebo 6V: Hfe 50min: Pd 35 watts-TO 66 CASE (COMPLIMENT TO 175)    $10.00
